5,000 USG GRP Septic Tank UAE

๐Ÿ” Click photo to enlarge

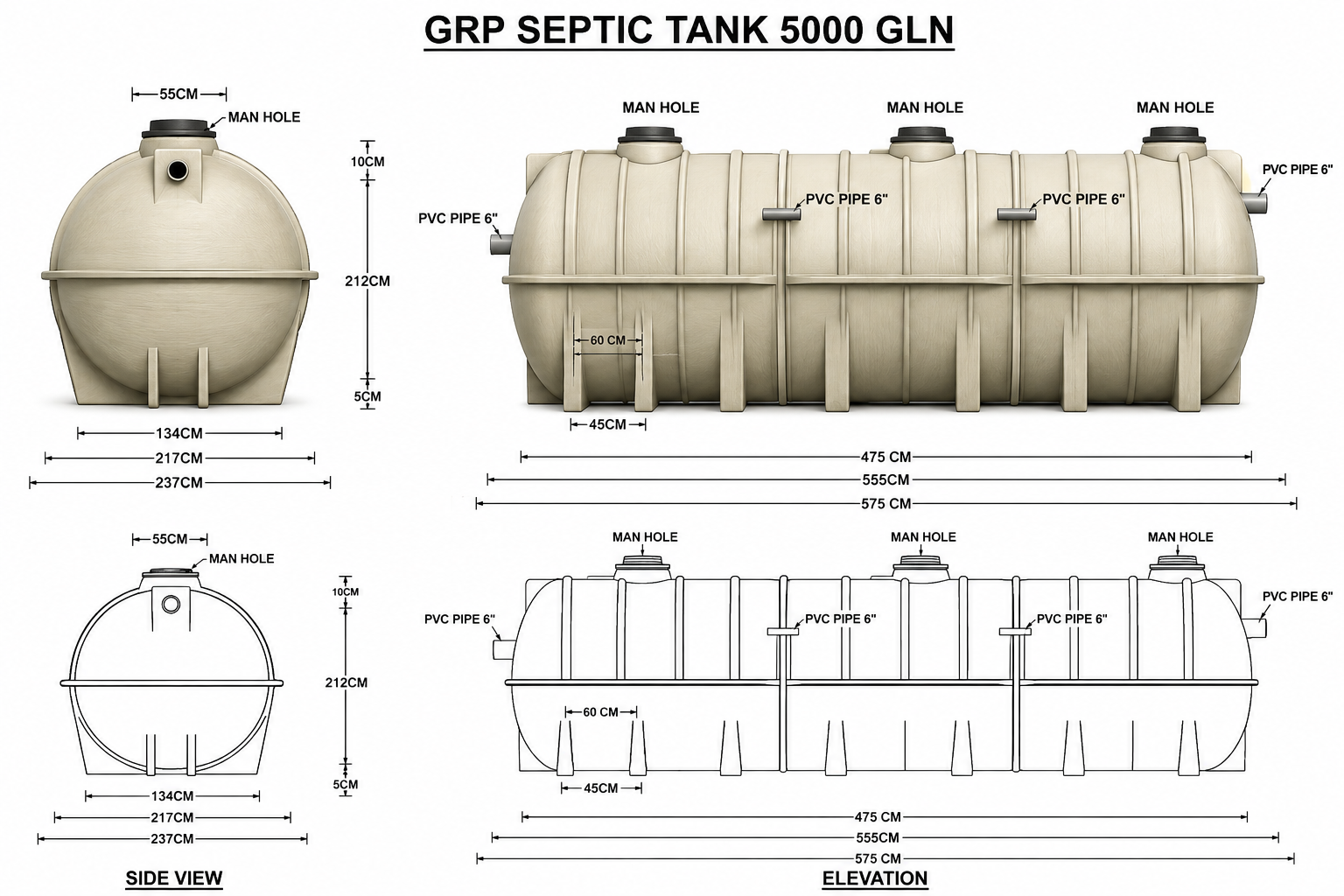

5,000 USG GRP Septic Tank UAE technical diagram
Industrial GRP Septic Tank โ€” UAE Municipality Compliant

5,000 USG (18,927 L)
GRP Septic Tank โ€” UAE

The 5,000 USG (18,927 L) GRP septic tank is a high-capacity industrial solution for large labour camps, industrial complexes, and major commercial developments in the UAE. It can serve 300 to 400 daily users and significantly reduces pump-out frequency compared to smaller tanks, lowering operational cost for large facilities.

Supplied by Khazaan โ€” UAE septic tank specialists delivering to Dubai, Abu Dhabi, Sharjah, and all emirates. In stock. Fast delivery available.

1 Year Warranty ยท UAE Municipality Compliant ยท Underground Burial Rated

Specifications

Capacity5,000 USG / 18,927 L
Best ForLarge commercial, labour camps
MaterialGlass Reinforced Plastic (GRP)
Inner SurfaceChemical-resistant resin lining
InstallationUnderground burial
ChambersSingle or two-chamber configuration
AccessManhole cover included on all sizes
ComplianceUAE Municipality compliant
Made InUAE
Warranty1 Year

Product Features

Underground burial rated - reinforced for soil overburden and groundwater pressure
Completely corrosion-resistant - immune to hydrogen sulphide in sewage environments
UAE Municipality compliant - approved for wastewater treatment across all emirates
Single and two-chamber options available - primary or primary plus secondary treatment
Sealed watertight construction - no seepage in or out
Chemical-resistant resin inner lining - purpose-built for wastewater environments
Manhole access on all sizes - inspect and desludge without excavation
Fast delivery across UAE - Dubai, Abu Dhabi, Sharjah and all emirates

Installation Guidelines

Excavate to a depth of tank height plus 300 mm for a gravel bedding layer
Lay a 300 mm compacted gravel or sand bed before lowering the tank
Back-fill with pea gravel or sand to prevent point loading on the tank shell
Do not use heavy machinery directly over the buried tank
Inlet pipe must enter above the liquid level of the first chamber
Outlet pipe should discharge to a soakaway or municipal connection
Install a vent pipe of minimum 100 mm diameter to atmosphere
Mark the manhole cover location with a surface marker for future access

Frequently Asked Questions โ€” 5,000 USG Septic Tank UAE

How many workers can a 5,000 USG septic tank serve in a UAE labour camp?

A 5,000 USG (18,927 L) GRP septic tank can typically serve 300 to 400 workers in a UAE labour camp when combined with adequate pump-out scheduling. For camps with higher water usage facilities such as canteens and laundries, a larger tank or additional tanks may be needed.

What is the largest GRP septic tank available in UAE?

KHAZAAN supplies GRP septic tanks in the UAE up to 20,000 USG (75,708 L) capacity. Sizes available include 5,000, 6,000, 8,000, 10,000, 12,000, 15,000, and 20,000 USG. Custom sizes can also be manufactured on request โ€” contact us at +971509583173.

Can a 5,000 USG GRP septic tank be installed underground at an industrial site in UAE?

Yes. KHAZAAN 5,000 USG GRP septic tanks are engineered for underground burial at industrial sites in the UAE. They are reinforced for heavy soil overburden and can be specified with traffic-rated covers for installation in vehicle access areas.

How do I get a price for a 5,000 USG septic tank in UAE?

Contact KHAZAAN on WhatsApp +971509583173 or call us directly for a current price and delivery quote for a 5,000 USG GRP septic tank anywhere in the UAE. We supply to Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, and all other emirates.
